Electrostatic hair selected machine (series) Profile
This machine suitable for fruits and vegetables, seaweed, mushroom, tea, herbal drinks and other food pieces, small, block, bar, filamentous entrained dried processed hair, fiber, paper, fine particles and other foreign matter get rid of, in particular, when the material surface oil or sugary sticky easy to adhere dander foreign body, this machine is more excellent Qu Yi effect (see AII type).
Machine model options:
B -type machine : Suitable for lighter small FD class , AD categories of products ( such as chives , parsley , onion slices , Haiqing dishes ) , as well as larger small stem -like density , typical dishes such as ocean habitat .
AI Type : versatility for a wide majority of particulate materials : dehydrated fruits and vegetables , native products, nuts , Chinese medicine Pieces, spices and other hair get rid of , and at the same screening Unqualified exclude dust.
AII type : For oily or sugary surface adhesion of foreign matter must get rid of the material , such as: sugar dehydrated vegetables in the cabbage, carrots ; snack foods like fried potato chips , french fries ; common dried fruit such as raisins , wolfberry ; bulk molding medical stopper ( coated with silicone easy to adhere to the hair cuttings ) , etc., will take additional powerful assistive devices to help remove hair and filter out foreign impurities .
AIII type : especially for large-scale operations with very fine dust get rid of more primary processed hair fiber : in particular, in addition to screenings have been easily clog the filter holes adhesion and should not be used in addition to the filter bag way ; and the need to feel or often used when clearing derelict . Usually need to configure separate and in addition to the larger suction filtration capabilities and a special airtight continuous exclusion devices . So need to special order.
http://v.youku.com/v_show/id_XMTY1NzUxNDA4OA==.html
New JX6-15 (T / E series) The main technical parameters
1. Processing capacity: 1500L / h (according to density, shape is different, very different capacity, approximately 40-1000Kg / h)
2. Normal adsorption height :60-110mm (the distance from the bottom surface adsorption material roll the disk) adjustable
3. Power and Power: 3N-50HZ 380V ± 10%, electrostatic operating voltage 6-20Kv, three-phase five-wire system
Shall ensure that the ground is good, the whole power: ≤ 3.1KW
4. Environmental conditions: temperature, humidity, RH «80%, clean air, dust does not contain the equipment corrosion
Effects of harmful substances. Runs about 55 db noise
5. Separation filter: Under this environment to achieve the effect of 99.99%
6. Dimensions: 2400x1090X1930 mm (A Ⅲ supporting machine outside of the filter device see photos)
7. Weight: 450Kg (refer to AI, A Ⅱ or B contains a set of filter box, A Ⅲ split pay extra)
8. Operative orientation options: press site arrangement and manipulators stations, control surfaces set left / right to specify (schedule) in order to determine when
About product upgrades:
Application of the machine after years accumulated a wealth of experience, to meet new and old customers and the variety, the demand for higher performance and cost, the recent launch of the new upgrade will improve again (T / E) series models, the original 1500 quite 6-15 in the new type, as well as new or specific models will be launched.

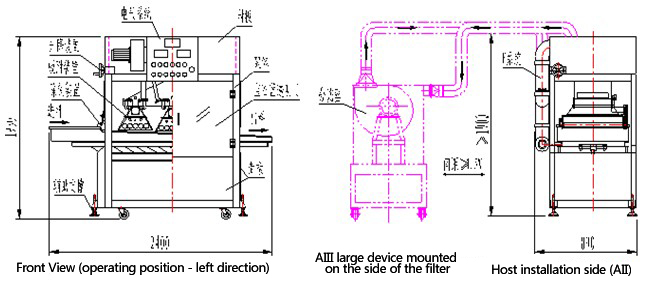

Structure and working principle (attached schematic)：
Electrostatic hair dryer elected by the frame body, the transport mechanism, in addition to iron device, suction device, discharge composition of filtration devices, lifting devices, electrical system, auxiliary support and protection devices.
Material from the conveyor or manual feed tray on the expected shock even by the transport mechanism for feeding, beating front-line, due to electrostatic induction and significant electrical, material mixed in lighter hair, paper, fibers and other foreign matter in the electric force forming a suspended state under the action of the roller is electrostatically adsorbed and air is sucked with the filter means being separated flows of filtered, and eliminate foreign substances to achieve air purification effect (A-type machine can simultaneously advancing the material powder from the bottom of the reject excluded).
Text download： Random data tools and spare parts |
