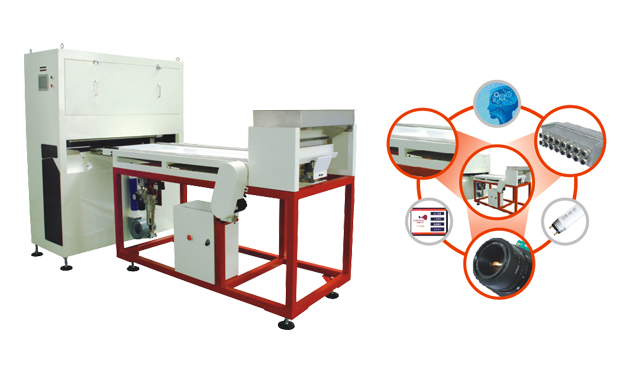

Beltscan CCD Color Sorter

Product name : Beltscan CCD Color Sorter

Item : 1006

Details :

【Technical Datas】

Model	Beltscan-60C/D	Beltscan-120C/D
Channels/Belt Wdith（mm）	600	1200
Capacity（t/h）	≤5.0	≤10.0
Sorting Accuracy	>95%	>95%
Optimized Carryover（bad：good）	3:1	3:1
Voltage（V）	AC220V/50Hz	AC220V /50Hz
Power（kw）	2.0	3.5
Air Pressure（MPa）	0.6-0.8	0.6-0.8
Air Cunsumption（m³/min）	≤0.9	≤1.8
Weight（Kg）	900	1200
Dimension（L×W×H）（mm）	2720×1164×1860	2720×2064×1860

Note:
1.All the performance index listed above are based on Mineral(impurity 2%),and the specific index will vary with the content of different raw materials and impurities.
2."C" model:High-definition monochromic CCD, "D" model:High-definition polychromic CCD

【Original Design,Unparalleled Efficiency】

Powerful Operating System:Equipped with various color sorting model and automatic memory function.No need any setting of next starting up,easy to get the best results.

High Speed and High Yield Material Handling Systems:High-speed and super-wide transmission system ensures the stability of the device,greatly improving production,ensure color sorting accuracy.

High Flexibility & Wide Application:Accurately set the operating parameters according to the track of different materials.To make the device multiple function,raise the added value of equipment.
